This commercial vessel is engineered for the unrestricted transport of bulk cargo containers and deck cargo. It features an all-welded steel hull and wheelhouse, optimized for durability and coastal operations. A prominent center-fore bow ramp provides seamless forklift access for rapid cargo handling. The vessel features a double-screw propulsion layout. The machinery, auxiliary equipment, and deckhouse are positioned aft to maximize deck space.
Dimensions & Tonnage
Length Overall (OA): 45.25 m
Length Between Perpendiculars (PP): 38.88 m
Length Waterline (WL): 39.87 m
Breadth Moulded: 11.00 m
Depth to Main Deck: 3.20 m
Designed Draught: 2.40 m
Gross Tonnage: 449 GT
Net Tonnage: 135 NT
Machinery & Propulsion
Main Engines: 2 x 530 kW high-speed, four-stroke marine diesel engines
Propulsion: Twin xed-pitch propellers (Double-Screw)
Generators: 2 x 400V, 3-Phase electrical system
Transformers: 2 x 30 kVA, 400V/230V, 3-Phase
Tank Capacities
Ballast Water: 454.2 m³
Fuel Oil: 38.6 m³
Freshwater: 23.6 m³
Bilge Water: 4.4 m³
Sewage Tank: 4.3 m³
Internal Compartments
Ballast water tanks
Void tanks
Fuel oil tanks
Fresh water tanks
Dedicated engine room
Steering gear room
Operational & Crew Capacity
Crew Capacity: 10 persons
Navigation Area: Coastal Area
Service Rating: Unrestricted structural stability calculations
Shipboard Equipment
Fire & Life-Saving: Fully supplied to standard regulations

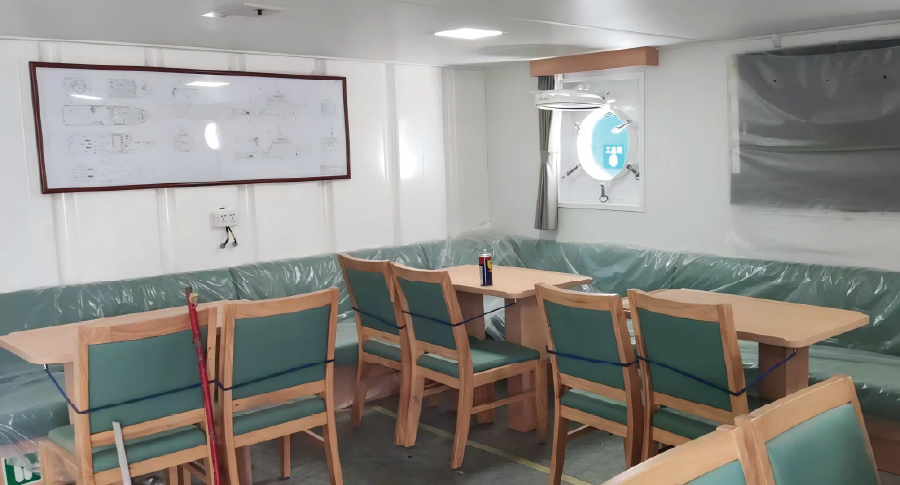

Galley & Mess: Fully equipped layout

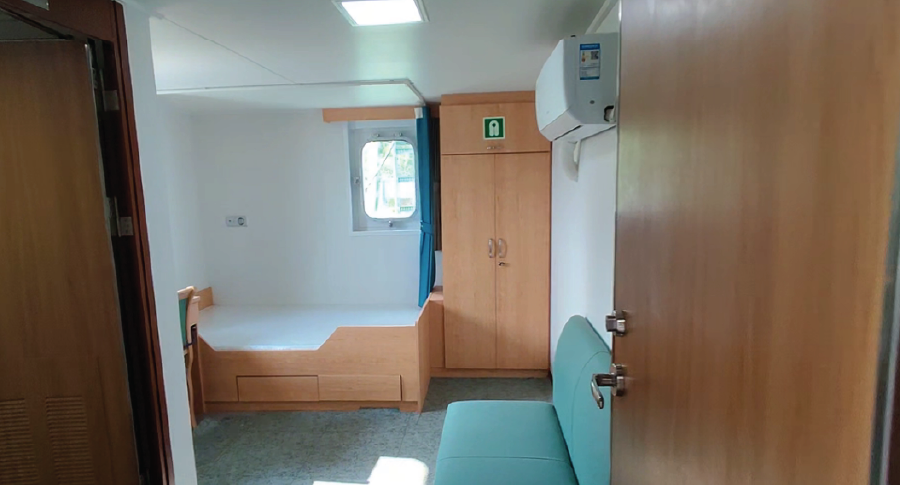

Accommodation: Complete crew t-out including air conditioning
